Class AB HIFI NAP250 Power amplifier Base on UK NAIM With SPK protection 80W+80W 8 ohm

Introduction:

NAIM power amplifiers have always been loved by audiophile players. The circuit is not too complicated, low power consumption, low investment, good sound quality, and has become a classic in the HIFI world. Its sound is high, medium and low-pitched, and it is very moderate.

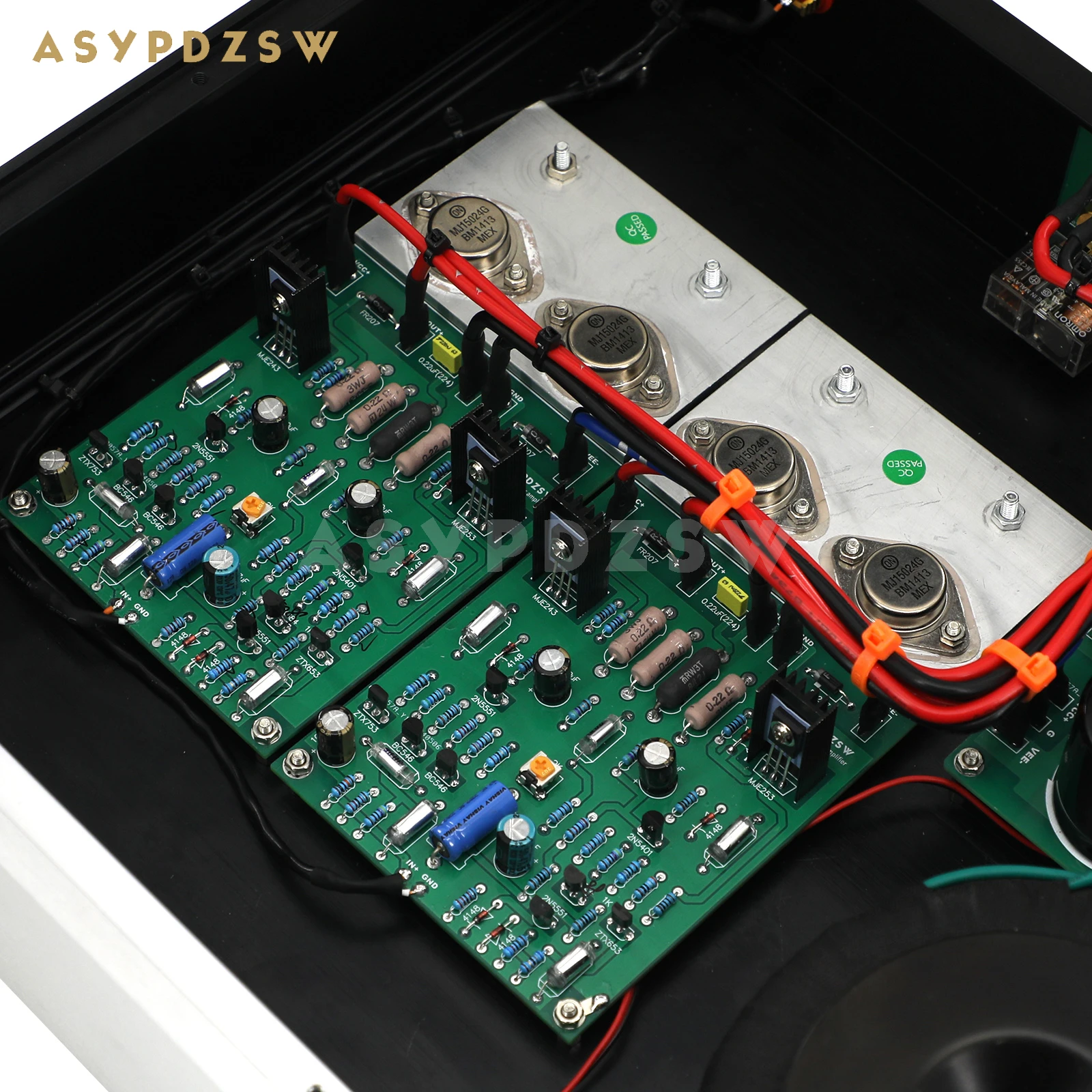

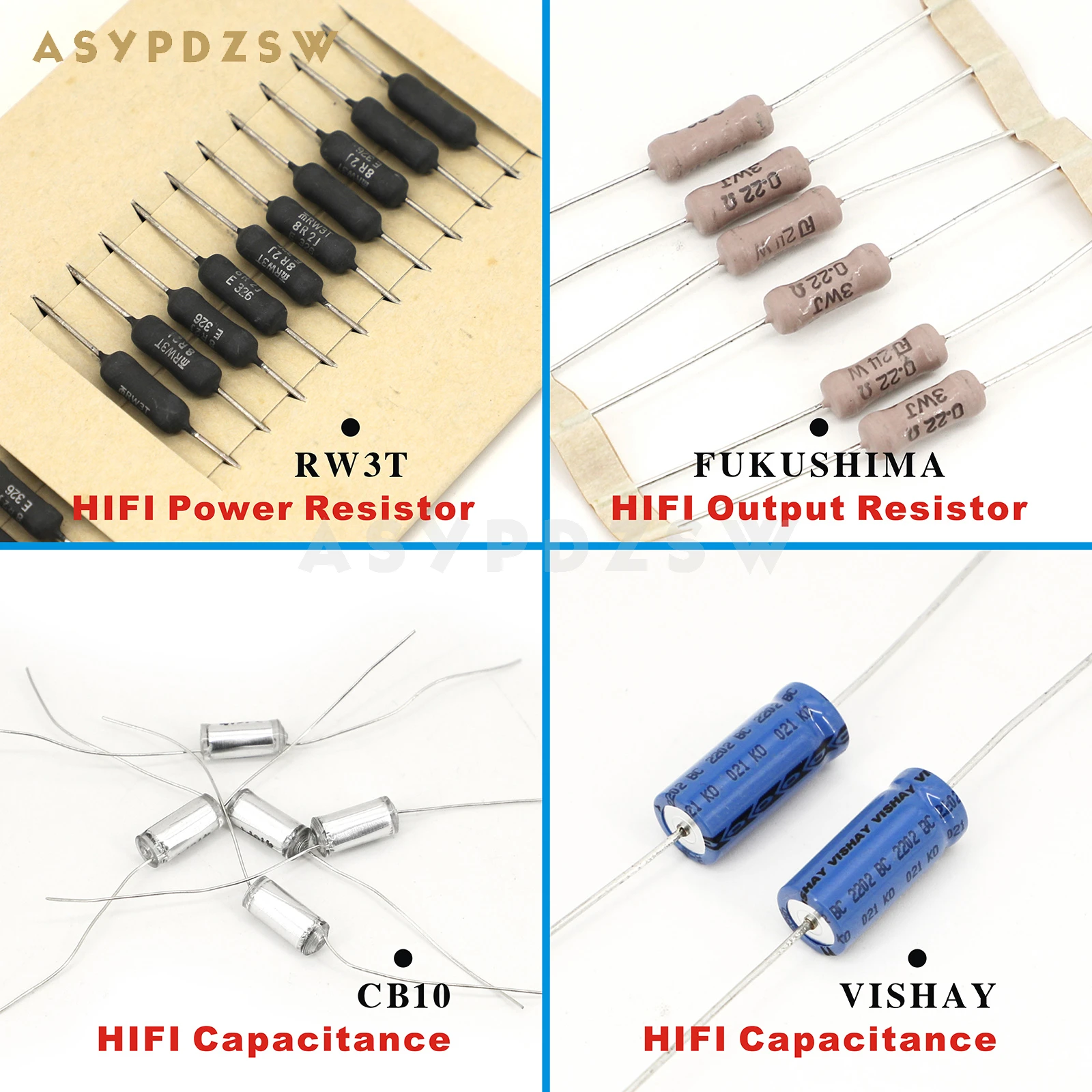

It makes people fascinated when they hear it. All the details are just right, there is no extra noise. The treble is transparent, the midrange is balanced, and the bass is powerful. The output tube using original New SANKEN 2SC2922. High precision metal film resistor, CB10+WIMA capacitors, and paired input transistors small triode.The main power supply uses 4 PCS NOVER 10000uF/50V main filter capacitor. it is one of NAIM’s best listening.

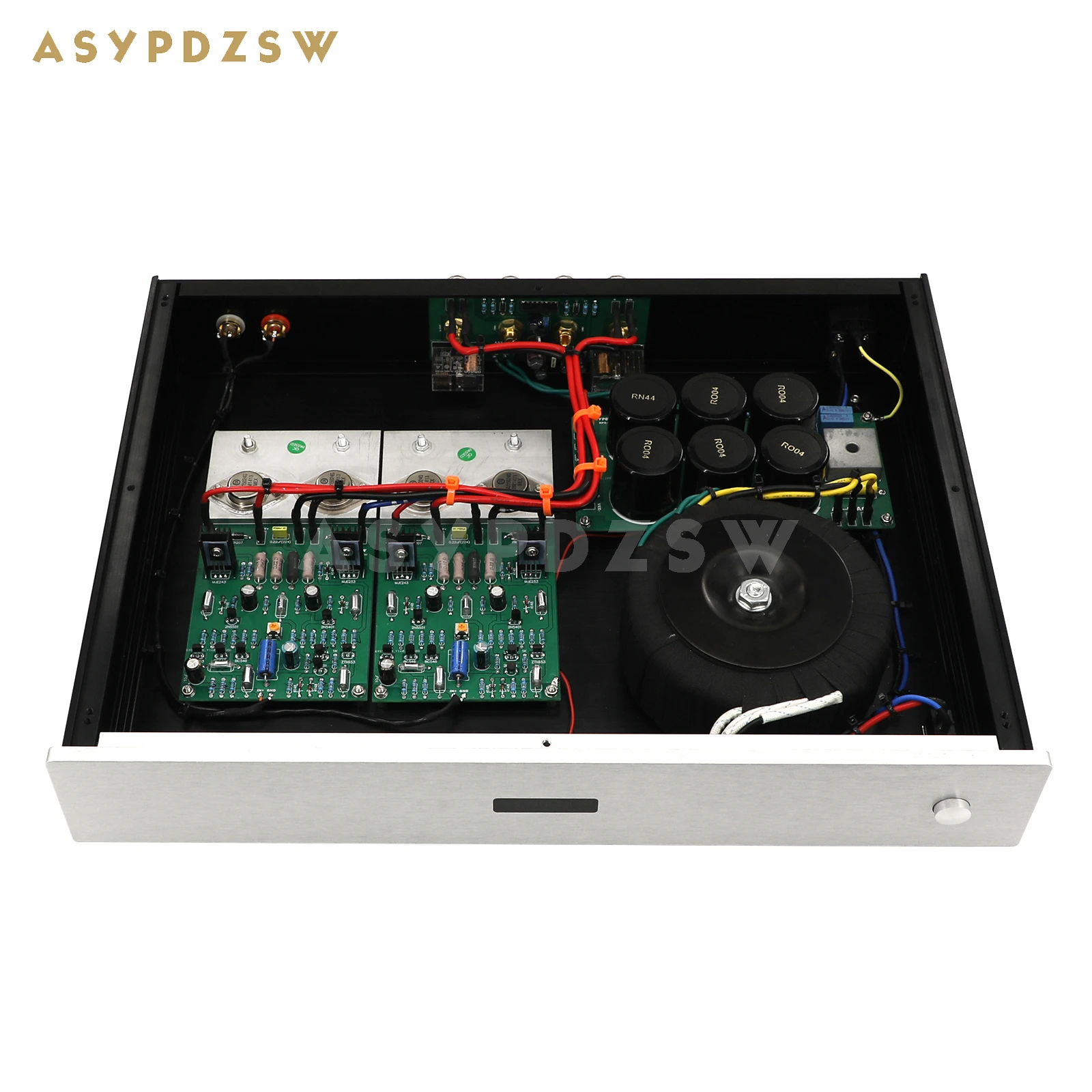

● Full aluminum chassis, Brushed surface treatment, pure black appearance with naim green characters are more charming.

● Customized black cloth 300W OFC toroidal transformer, same as original amplifier transformer.

● Using CANARE pure copper signal wire input in Japan and 2.5 square meters of pure copper wire output. The best results are obtained in the direction of sound quality. High, medium and low frequencies achieve excellent results.

● With speaker output protection function, it can solve the hidden dangers of the original NAP200 without worrying that you will hear a bang when starting. Safer to use.

● Use high-quality CMC RCA + gold-plated crystal speaker terminals.

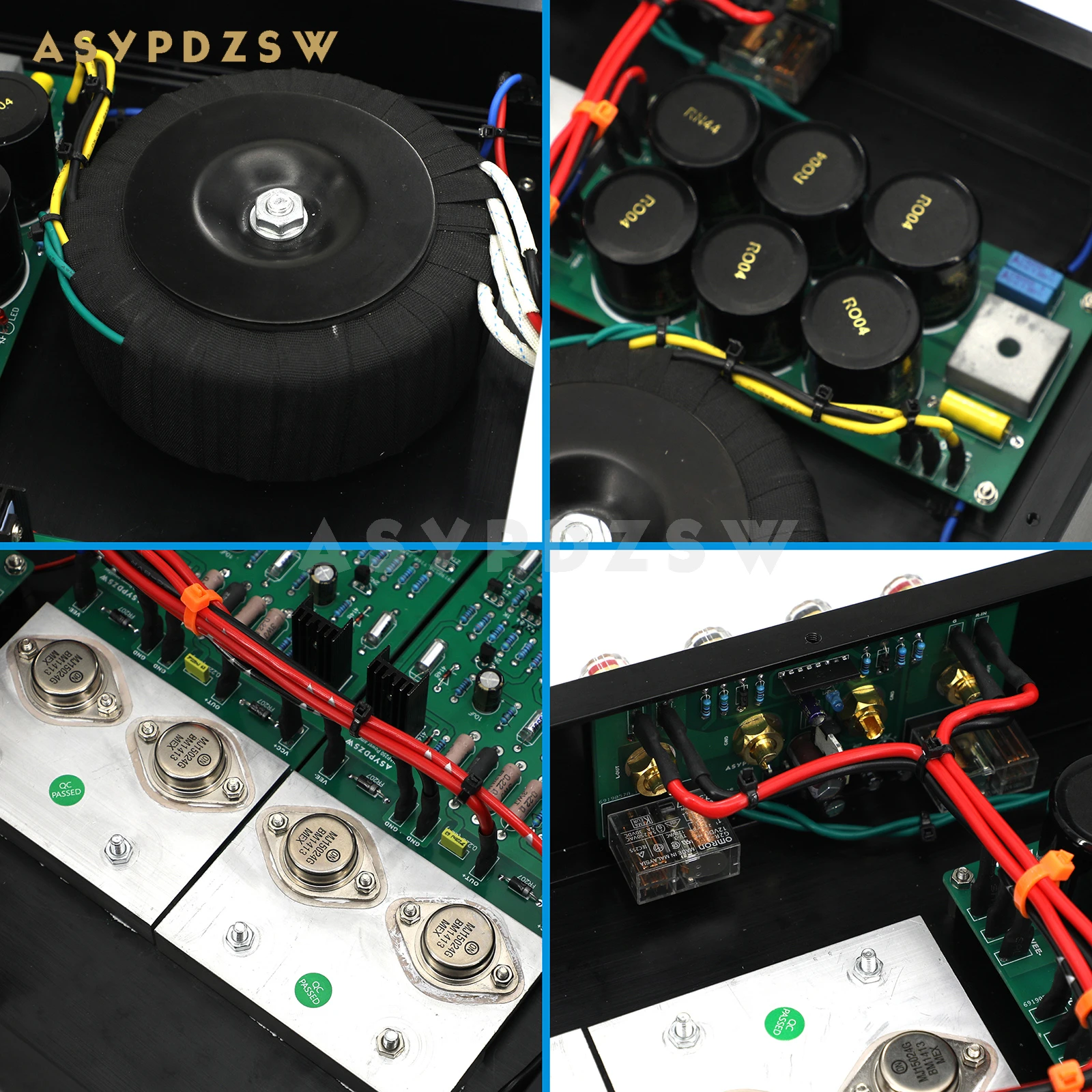

● Power supply uses NOVER 10000uF /50V * 4 PCS large filter capacitor to ensure HIFI sound quality.

■ Input voltage: AC 115V / 230V(Optional)

■ Output power: 75W + 75W (8Ω load)

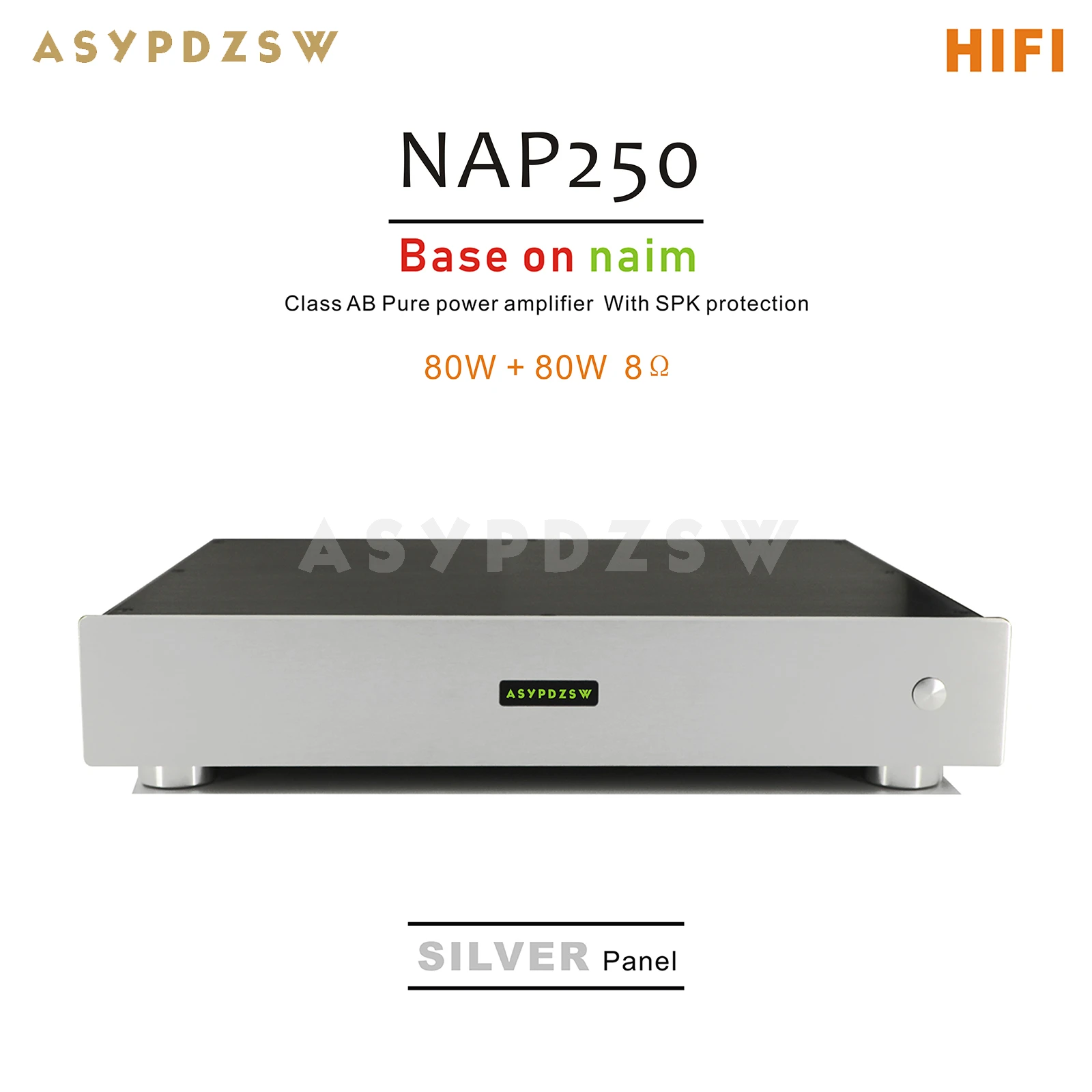

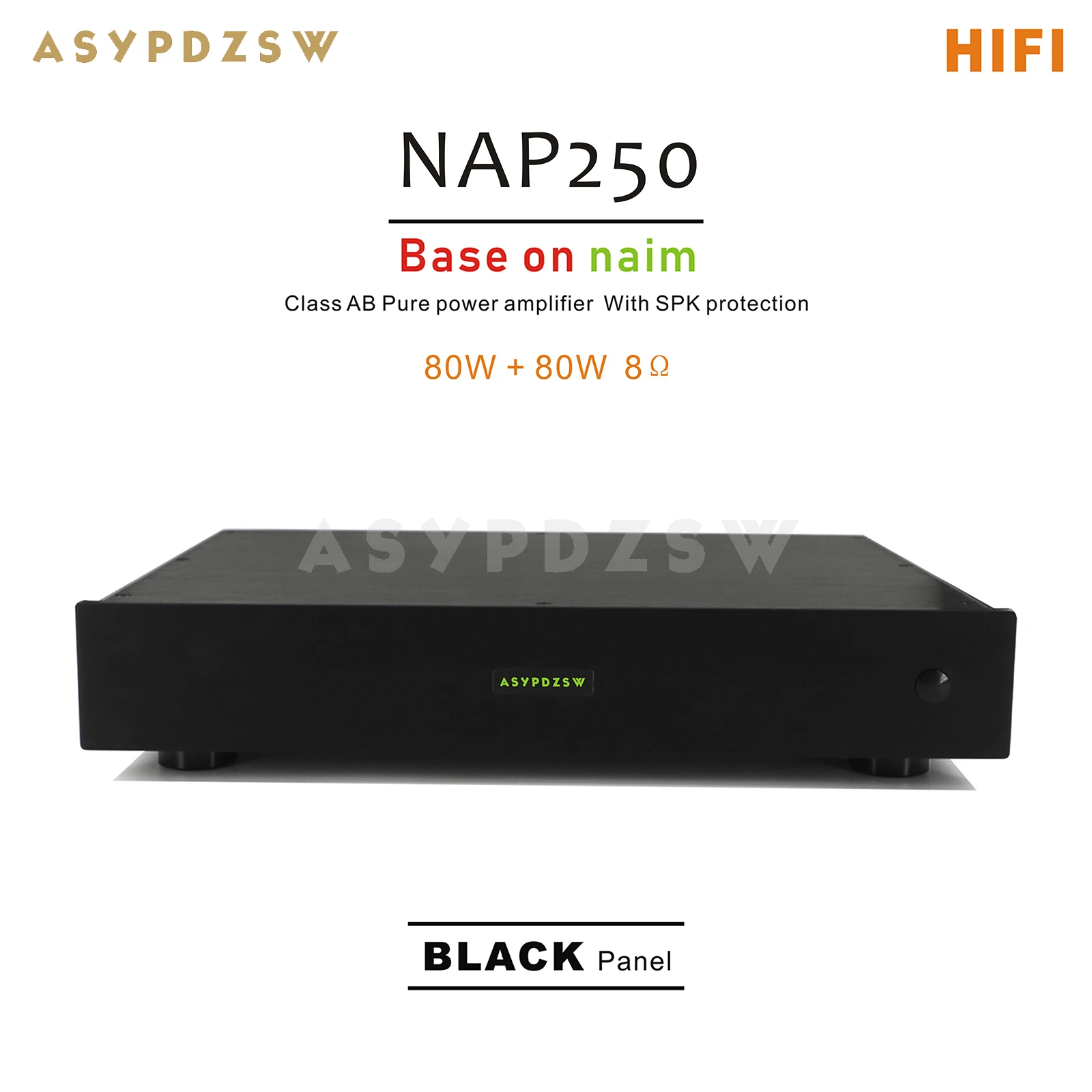

■ Front panel color: Silver or Black (Optional)

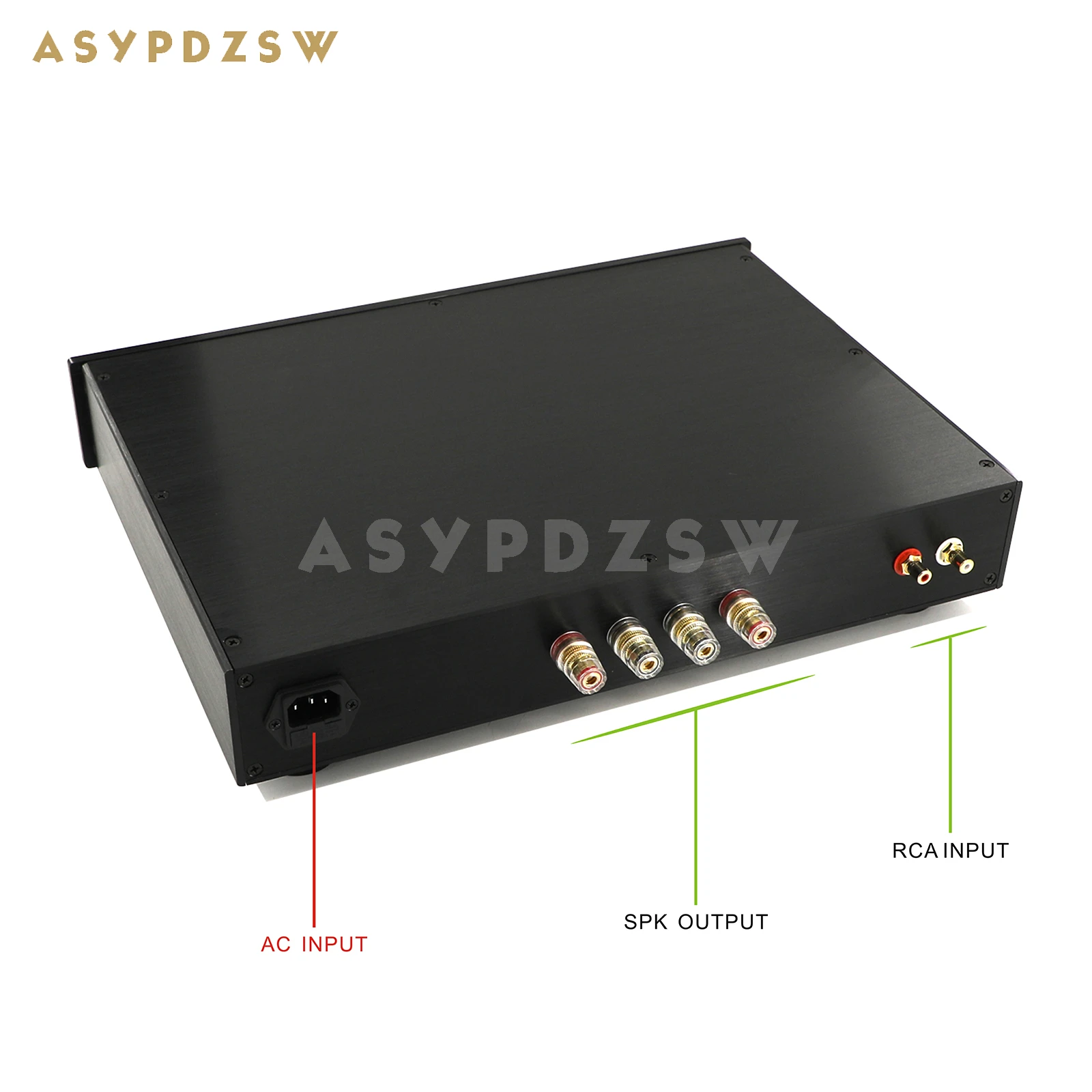

■ Input: RCA (L/R)

■ Input impedance: 18 kΩ

■ Gain: +29 dB

■ Frequency response:  -3dB  2Hz & 65kHz

■ Load: 8 Ω

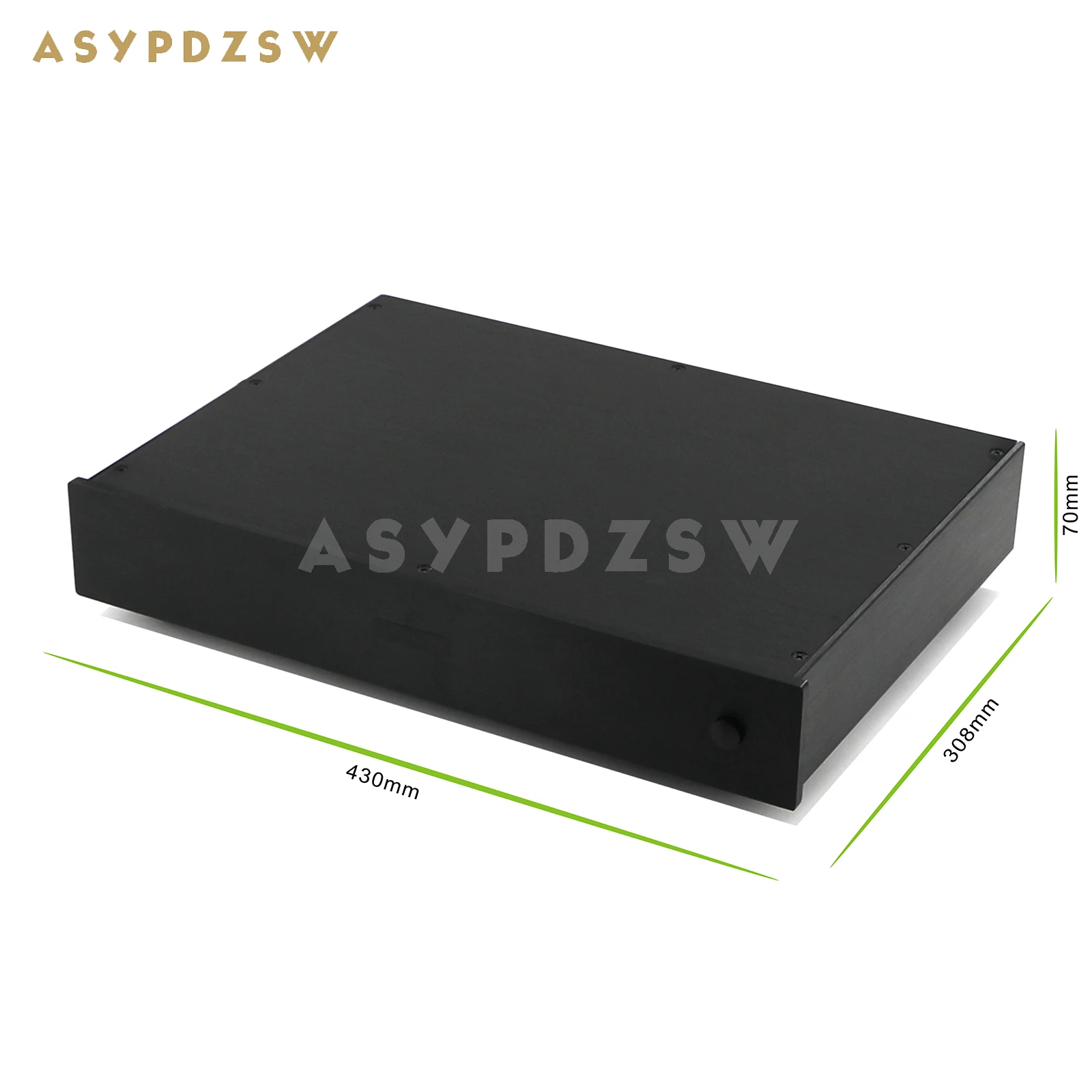

■ Size: 430mm x 70mm x 308mm (W x H x D)

■ Weight: 10KG

Package includes:

Class AB HIFI NAP200 Power amplifier                                   X1

NOTE: We do not include any connection cables.
